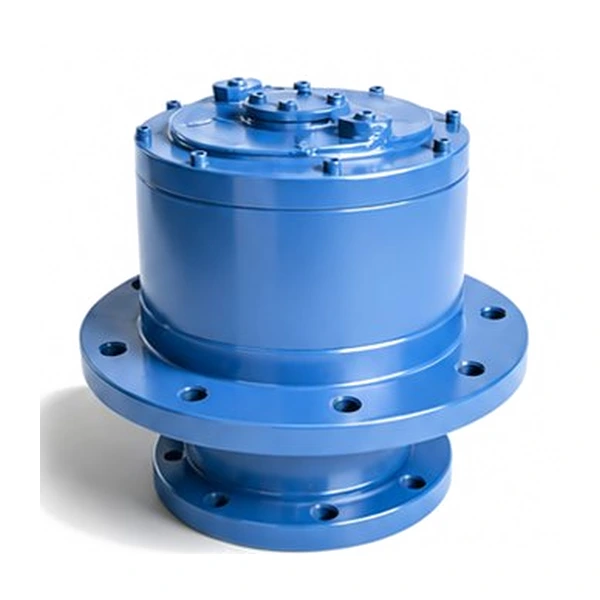

603L2B Planetary Wheel Drive

The reinforced variant — when standard bearings are not enough.

The EP-603L2B exists because not every 4,000 Nm application is created equal. A telehandler on a paved yard and a forestry forwarder on a 40-degree side-slope both need the same output torque, but the forwarder subjects the wheel drive planetary gearbox to radial forces that would overwhelm the standard-duty bearings of the 603L2A within a few thousand hours. The L2B adds 10 kg of housing mass and steps up to an oversized bearing set specifically engineered for these extreme side-load conditions.

Beyond the bearing upgrade, the L2B extends the cold-start capability to -25 deg C (versus -20 deg C for the L2A) and provides additional motor adapter mounting provisions for non-standard hydraulic motor flanges — two details that matter disproportionately in mining and forestry environments where temperatures drop hard and motor interchangeability across a mixed fleet reduces inventory cost.

Cornering Side-Load

When a vehicle corners, the centripetal force transfers through the tyre contact patch as a lateral force on the wheel hub. Larger tyres amplify this force because the moment arm (tyre width plus offset) increases. A 900 mm off-road tyre on a 6-tonne machine cornering at 15 km/h generates 8,000-12,000 N of radial side-load on each outer wheel drive bearing — forces that act in addition to the vehicle weight reaction.

Cross-Slope Operation

Forestry forwarders and mining haul vehicles routinely traverse 20-40 degree cross-slopes. At 30 degrees, half the vehicle weight transfers laterally through the downhill wheel bearings as a sustained radial load. On a 7-tonne machine, each downhill wheel drive absorbs approximately 17,000 N of continuous radial force. Standard bearings designed for flat-terrain operation will pit and spall within 3,000-5,000 hours under these conditions.

Impact Loading

Striking a rock, stump, or kerb at speed generates a radial shock load of 3-5 times the static wheel load. On rough terrain where this occurs multiple times per hour, the cumulative damage to undersized bearings is rapid. The L2B oversized tapered roller bearings have approximately 40% higher dynamic load rating than the L2A set, extending the L10 bearing life proportionally under these repeated impact conditions.

Large-Diameter Tyre Effect

Larger tyres increase the moment arm between the tyre contact patch and the gearbox output bearing. A 900 mm tyre creates approximately 30% more bending moment on the output bearing than a 700 mm tyre under the same cornering or side-slope conditions. The L2B housing geometry accommodates this increased moment by moving the output bearing further apart axially, reducing the bearing contact stress for the same external load.

Can I retrofit an L2B onto a machine currently using the L2A?

Yes. The L2B output flange bolt pattern and wheel mounting interface are identical to the L2A. The housing is 10 kg heavier and slightly larger in the motor-end diameter due to the additional adapter provisions, so verify that the chassis has clearance for the marginally wider housing. The hydraulic motor connections, brake release circuit, and declutch mechanism are the same between both variants.

How does tyre size affect planetary wheel drive bearing life?

Larger tyres increase the bending moment on the gearbox output bearing because the tyre contact patch is further from the bearing centre. As a general guideline, increasing tyre diameter by 30% (for example, from 700 mm to 900 mm) increases the bending moment on the output bearing by approximately 30% under the same vehicle weight and cornering conditions. This is a linear relationship that directly reduces bearing L10 life unless the bearing dynamic load rating is increased to compensate — which is exactly what the L2B provides relative to the L2A.

What happens to a hydraulic wheel drive in extreme cold below -25 deg C?

Below the rated cold-start limit, the gear oil viscosity increases to the point where it may not flow adequately to all bearing surfaces during the first minutes of operation. This creates a temporary boundary-lubrication condition that accelerates surface wear. The L2B -25 deg C rating assumes SAE 75W-90 synthetic oil; for sustained operation below -25 deg C, consult Korea Ever-Power engineering for an arctic-grade ISO VG 68 synthetic fill that extends the cold-start limit to approximately -35 deg C.

Is a wheel drive planetary gearbox better than a chain final drive for forestry equipment?

For forestry applications, the planetary wheel drive is overwhelmingly the better choice. Chain final drives require regular tension adjustment (typically every 200-500 hours in forestry conditions), throw lubricant onto the forest floor (an environmental compliance issue in most jurisdictions), and are vulnerable to debris entanglement from branches, bark, and logging slash. The sealed planetary gearbox eliminates all three problems. The only scenario where a chain drive makes sense is on very old machine platforms where the axle geometry cannot accommodate a hub-mounted gearbox — and even then, a retrofit adapter kit is usually more cost-effective than continuing to maintain the chain system.

What maintenance does the 603L2B require in a mining environment?

Oil change every 1,500-2,000 hours (reduce interval in dusty or wet conditions). First change at 250 hours. Inspect seals for damage at every oil change — the abrasive dust in mining environments is the primary threat to seal life. Check wheel mounting stud torque quarterly. The parking brake requires no adjustment. If the machine operates in standing water regularly, consider replacing the standard breather with a desiccant breather to prevent moisture ingress during thermal breathing cycles.

Does the 603L2B work with a worm gear speed reducer as an intermediate stage?

It can, but there is rarely a reason to do so. The 603L2B already provides ratios up to 40:1 across two planetary stages at 95% efficiency. Adding a worm reducer upstream would increase the total ratio but reduce the overall system efficiency to 50-70% (worm efficiency multiplied by planetary efficiency), generating significantly more heat and wasting hydraulic energy. If you need ratios above 40:1, it is more efficient to step up to the 605L2 or 606L2/L3 models in the wheel drive range, which offer higher ratios in purely planetary configurations without the efficiency penalty of a worm stage.
