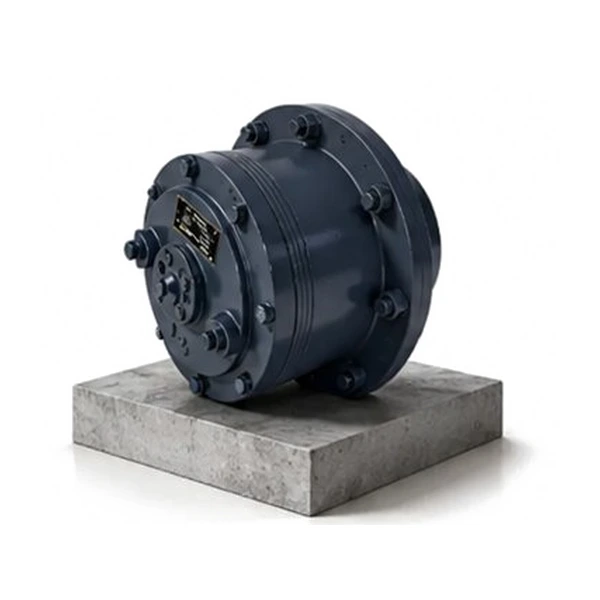

417W3 Winch Drive Planetary Gearbox Reducer

On an AHTS vessel, the 417W3 plus drum, cable, and motor assembly can total 8-12 tonnes — requiring dedicated structural reinforcement in the stern area. The vessel naval architect must account for this concentrated mass in the longitudinal strength calculation, the local deck plating design, and the ballast condition for stability with and without the winch loaded. The 417W3 mounting bolts must transmit the 250,000 Nm torque reaction into the deck structure — requiring a reinforced foundation frame that distributes the load across multiple deck frames rather than concentrating it on a single transverse.

On a mine headframe, the 417W3 drum assembly is mounted on a winder bed that transmits the torque reaction into the headframe foundations. The 2,250 kg gearbox weight is a minor fraction of the total drum and rope weight (which can exceed 20 tonnes at deep shafts), but the dynamic torque pulsations at 250,000 Nm induce vibration in the headframe structure that must be damped to prevent fatigue cracking at welded joints. Elastomeric isolation mounts between the winder bed and the headframe columns are standard practice at this torque level.

The 2,250 kg unit requires a crane or hoist with minimum 5,000 kg capacity for installation and removal. On AHTS vessels, the stern area must provide crane access for the ship crane during dry-dock maintenance. On mine headframes, a permanent overhead hoist capable of lifting the drum assembly (gearbox + drum + partial rope = 10-15 tonnes) should be incorporated into the headframe design. Contact Korea nga Walay Katapusan nga Gahom for the detailed foundation loading diagram and lifting frame specification.

Largest-Class AHTS Vessels (350+ t Bollard Pull)

The ten to fifteen largest AHTS vessels operating globally — the 350-400 tonne bollard pull class that deploys anchor systems for ultra-deepwater semi-submersibles and FPSOs in water depths exceeding 2,000 metres. The 417W3 at ratio 200-300 provides the drum torque for handling 200-300 tonne chain and wire assemblies. The 2,000 Nm brake holds the full chain weight at maximum depth with safety factors that classification societies accept without supplementary analysis. The slewing drive positions the stern equipment.

Ultra-Deep Mine Production Winders (1,000-2,000 m)

The deepest operating mines — South African gold mines descending to 2,000+ metres, and deep Canadian and Australian mines at 1,000-1,500 metres — where the combined rope, skip, and ore weight at full depth reaches 100-150 tonnes. The 417W3 at ratio 250-300 provides the drum torque for production winding at these depths, and the 2,000 Nm brake exceeds the safety factor requirements of every major mining jurisdiction at these loads and depths.

Ultra-Deepwater Mooring Systems

Mooring winches on FPSOs and semi-submersibles maintaining station in ultra-deepwater (1,500-3,000 metres) where each mooring leg carries 150-250 tonnes of line tension during extreme weather events. The 417W3 provides the torque to deploy, adjust, and recover mooring lines under these tensions, while the 2,000 Nm brake maintains constant tension during months of continuous station-keeping. The auxiliary winch drives on the same platform handle the smaller tugger and guideline winches.

If the brake can hold more than the rope, does the brake safety factor calculation still apply?

Yes. The brake safety factor is calculated against the suspended load torque, not against the rope MBL. The fact that the brake can hold 600,000 Nm while the load only generates 400,000 Nm means the SF = 1.5. The rope MBL comparison is relevant for a different analysis: it confirms that the failure mode under extreme overload would be rope failure, not brake slip — which is the preferred failure hierarchy because a broken rope is a single-point event, while brake slip produces uncontrolled dynamic descent with escalating consequences.

How does the 417W3 compare to the 416W3 for the same application?

25% more torque (250,000 vs 200,000 Nm), 11% more brake (2,000 vs 1,800 Nm), 22% more weight (2,250 vs 1,850 kg). The 417W3 is the correct choice when the calculated drum torque exceeds 200,000 Nm at any cable layer, or when the 1,800 Nm brake of the 416W3 produces insufficient safety factor at the application drum diameter and ratio. If both the torque and brake requirements fall within the 416W3 envelope, the 416W3 saves 400 kg of installed weight — a meaningful difference on AHTS vessels where stern weight affects trim and stability.

What motor configuration is typical for the 417W3?

At ratio 200, the motor input torque is 1,250 Nm. For electric drive: a single 800-1,200 kW AC induction or PM motor with VFD provides this torque at 1,500-2,500 rpm from a standard industrial motor frame. For hydraulic drive: quad 500 cc/rev axial piston motors through a 4-way combiner gearbox. Most new-build 417W3 applications specify electric drive for the power density advantage, the regenerative braking capability, and the elimination of the multi-motor hydraulic synchronisation challenge.

What overhaul interval applies to the 417W3 at FEM M6 production mining duty?

Target first overhaul at 20,000-25,000 hours. The 2,250 kg housing mass provides the thermal inertia and structural rigidity that extend component life even under the most severe duty profiles. Brake disc replacement at 8,000-12,000 hours. Seal replacement at 8,000-10,000 hours. Output bearing inspection at 15,000 hours. Oil changes every 1,000-1,500 hours with sampling every 500 hours. External oil cooler maintenance (filter change, pump inspection) every 2,000 hours. Overhaul cost approximately 30-40% of new unit price. Turnaround: 8-12 weeks.

What oil volume does the 417W3 require?

Approximately 45-60 litres depending on ratio and mounting angle. An external oil cooler with circulation pump is mandatory — the oil-bath convection capacity cannot dissipate the heat generated at sustained M6 duty at 250,000 Nm. The cooler should maintain oil temperature below 75 deg C during continuous operation. Use API GL-5 SAE 80W-90 EP gear oil (or SAE 75W-90 full synthetic for cold-climate operations). Contact Korea nga Walay Katapusan nga Gahom for the recommended cooler capacity based on the specific duty cycle and ambient temperature.

Is the 417W3 the largest winch drive available?

No. The 419W3 at 330,000 Nm, 2,500 Nm brake, and 3,200 kg sits above the 417W3 as the absolute catalogue maximum. Beyond the 419W3, applications transition to multi-gearbox configurations (two 417W3 units driving one drum through a combining gearbox) or to the ZL/ZR high-speed winch drive series with electric motor pairing. Contact Korea nga Walay Katapusan nga Gahom for applications exceeding 330,000 Nm to discuss custom or multi-unit configurations.

380 t bollard pull AHTS, main anchor handling winch, 417W3 at ratio 220, dual 800 kW AC motors. The vessel completed 22 ultra-deepwater anchor deployments in the first 12 months — the deepest at 2,100 metres in the Santos Basin. The 2,000 Nm brake held the 240-tonne chain assembly at full depth during a 14-hour weather standby without a millimetre of chain counter movement. This is the third Ever-Power winch drive model in our fleet (we also run 416W3 and 413W3 on smaller vessels), and the 417W3 maintains the same build quality and documentation standard that secured class approval on the smaller units without supplementary requests.

Main ore winder at a 1,650-metre gold mine, 417W3 at ratio 280, single 1,100 kW AC motor with VFD. The skip carries 25 tonnes of ore through a shaft where the 56 mm rope weighs 8,250 kg at full depth. The brake safety factor at the deepest point (25,000 + 8,250 kg total, 800 mm PCD): SF = 600,000 / (33,250 x 9.81 x 0.4) = 4.6 — far exceeding the mine inspector minimum of 2.5. After 9 months of 3-shift production winding at 320 cycles per day, oil analysis shows zero bearing distress markers. The VFD regen braking recovers 18% of the skip descent energy to the mine electrical grid — a benefit the previous hydraulic winder could not provide.

FPSO 12-point mooring system, 2,500-metre water depth, one 417W3 per mooring leg at ratio 250. The winches have maintained station through 8 months of continuous operation including two tropical storm events where individual mooring legs carried sustained tensions exceeding 200 tonnes. The 4-star reflects an installation experience: the 2,250 kg weight required the FPSO construction crane at maximum capacity during the module installation phase — there was less than 5% crane margin remaining. If the 417W3 had been 200 kg heavier, the installation sequence would have required a separate heavy-lift crane mobilisation at significant additional cost. For future mega-class gearbox designs, every kilogram of weight reduction at this tier has a disproportionate impact on installation logistics and cost.
